Tyco MX & MZX Technologies brings together the latest fire detection technology from around the world into a comprehensive international range of fire detection systems.
 The MX & MZX Technologies are being made available on a wide range of internationally approved panels and systems available from Tyco companies world-wide including:

Tyco MX & MZX Technology has used the combined knowledge in the field of fire engineering from the world’s leading fire detection companies to produce a range of products, which are capable of world-wide approval and will carry VdS, LPCB & Marine approval from the outset, also MX4000 panels are certied to SIL2 according to IEC6150.
The MINERVA MZX panels are intelligent LPCB EN54 approved panels, which can be networked to provide up to 792 detection loops and installed to BS5839:Pt.1.

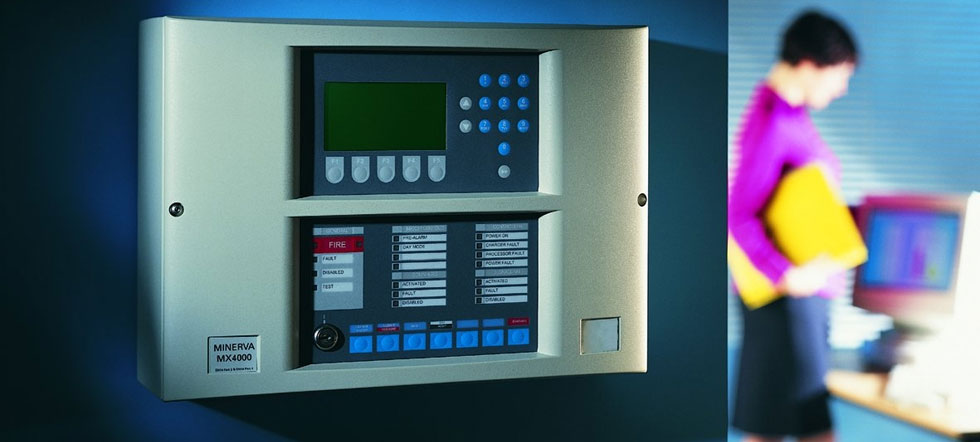

i.    MX4000 - 2 to 8 MX DIGITAL detection loops, up to 1000 Addresses
ii.    MZX125 - Single MX DIGITAL detection Loop, up to 125 Addresses, 16 Zonal LEDs
iii.    MZX250 - Single MX DIGITAL detection Loop, up to 250 Addresses, 32 Zonal LEDs
iv.   MZX251 - Single MX DIGITAL detection Loop, up to 250 Addresses, 32 Zonal LEDs
v.   MZX252 - Two MX DIGITAL detection Loop, up to 500 Addresses, 32 Zonal LEDs
vi.   MZX253 - 2 to 4 MX DIGITAL detection Loop, up to 1000 addresses, 64 Zonal LEDs
vii.   MZX254 - 2 to 4 MX DIGITAL detection Loop, up to 1000 addresses
viii.  Profile P405 - 2 to 4 MX DIGITAL detection Loop, up to 1000 addresses, 240 Zones
ix.   Profile P485 - 2 to 4 MX DIGITAL detection Loop, up to 1000 addresses, 240 Zones with zonal LEDs
x.   Profile P805 - 2 to 8 MX DIGITAL detection Loop, up to 2000 addresses, 240 Zones
xi.   Profile P885 - 2 to 8 MX DIGITAL detection Loop, up to 2000 addresses, 240 Zones with zonal LEDs

A maximum of 1200 digital INPUT/OUTPUT points can be provided via expansion boards connected to the remote bus.As the range of detection panels and systems which use Tyco MX Technology increase, all sizes of commercial and industrial buildings and risks around the world will be able to take advantage of the technology.
A wide range of detectors and ancillaries makes MINERVA MX suitable for applications from clean areas and offices to large industrial and hazardous areas.

Thorn Security has a long and proud tradition in fire detection & extinguishing systems.
Its became part of Tyco International in 1996.
THORN Fire detection and extinguishing products are made in world class globally certified European and American.


Download Fire Detection Systems
